TPED Transport Tanks

PRODUCTION TPED Transport Tanks

YOUR RELIABLE SOLUTION FOR HIGH QUALITY METAL TANKS AND METAL CARPENTRY PRODUCTS

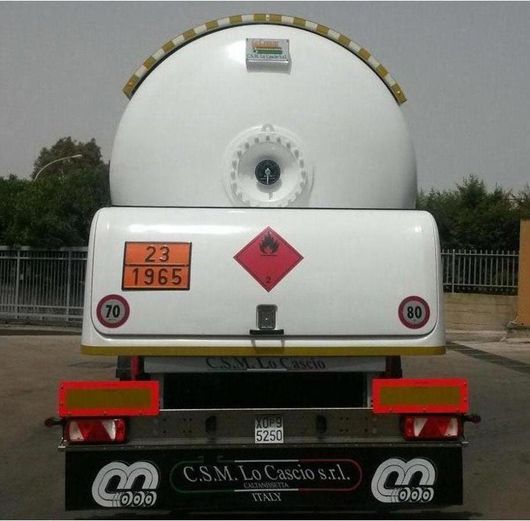

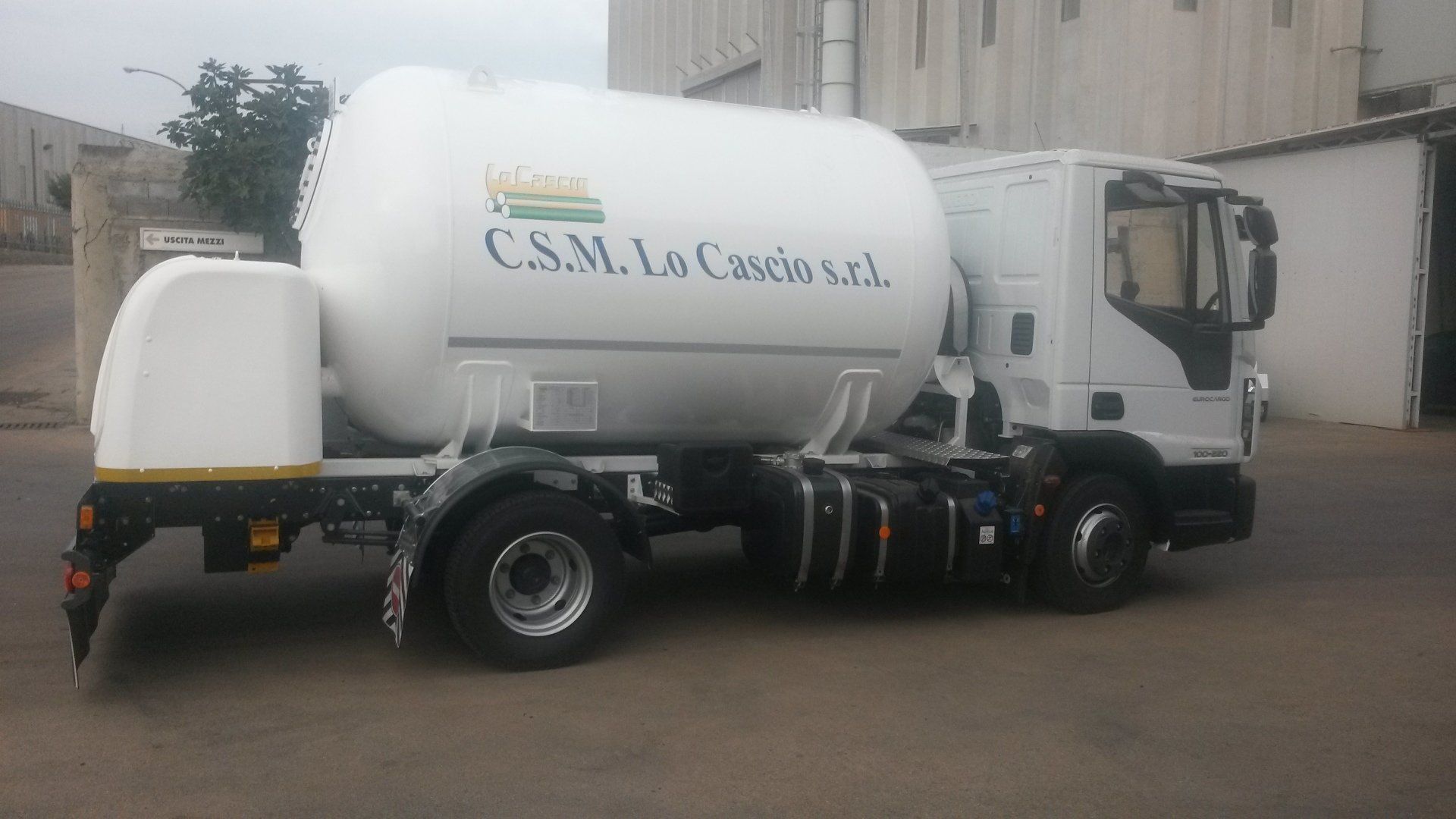

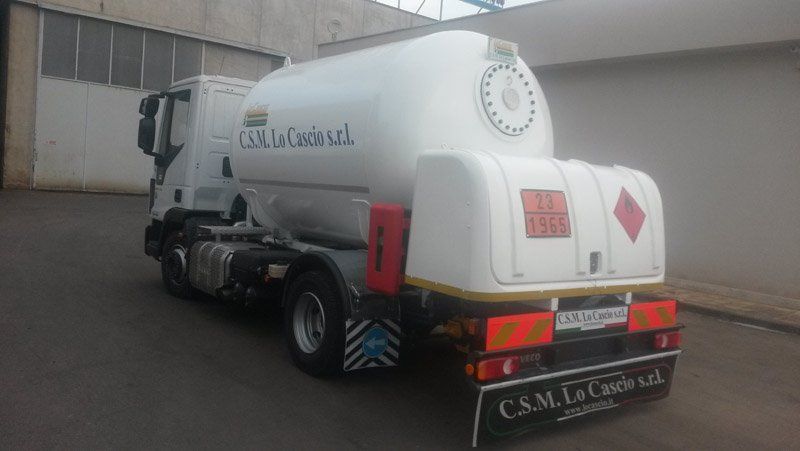

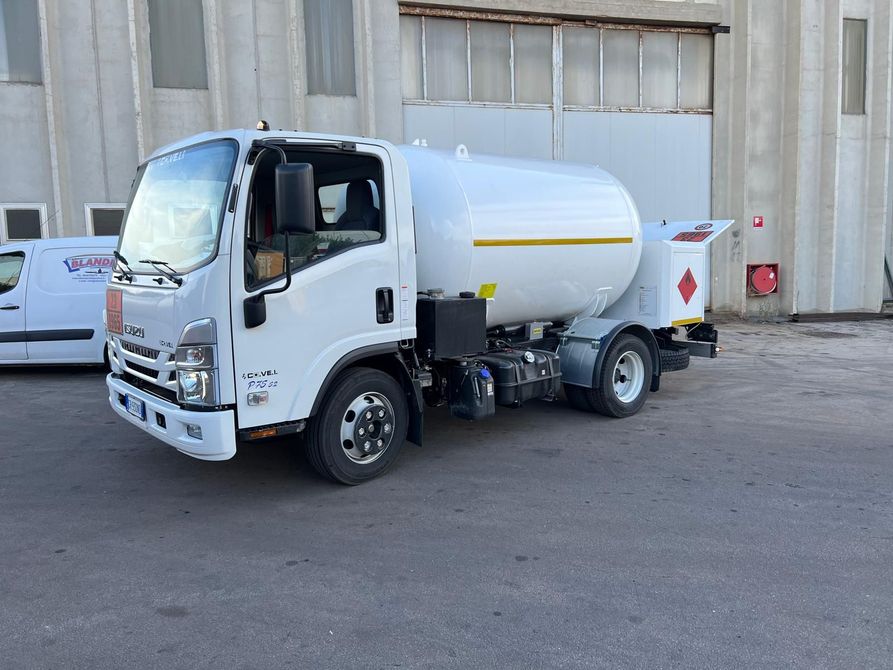

Tanker trucks for liquid gas transport LPG

Our tankers for the transport of liquid LPG gas, compliant with ADR Class 2 Classification Code 2 Order 2F ADR 2013, are designed and built according to high technical standards to ensure safety and reliability during transport.

The detailed technical specifications are given below.

Caratteristiche

A. Minimum Requirements for Your Vehicle:

Suitable for the capacity of the tank being supplied.
The date of first registration must not exceed five years.

B. Tank:

Volumetric capacity: from 4 m3 to 28 m3.
Bottom and hull material: P 460 NL1 steel.
Manhole: No. 1 from diam. 420 to diam. 520 applied to the center of the rear or front bottom.
Internal breakwaters.
Eyebolts for vacuum lifting.
Needle level for max filling: No. 01.
Pressure gauge: No. 01.
Magnetic level indicator: No. 01 placed laterally.
Thermometer.

Slide Title

Scrivi qui la tua didascalia

Button

Slide Title

Scrivi qui la tua didascalia

Button

Surface treatment external

C. Transfer Group: Exhaust System - Primary Function

SAMPI MA07GX1000 counter code sma07gx1000: N° 01.
Blackmer 2” LGLD2E pump: N° 01.
Hydraulic motor support kit and rvp20/25: No. 01.
Filter with standard 2” basket: No. 01.
1” by-pass valve.
Bottom valves.
IVG roll 40 m 1” mf connected complete with certification: N° 01.
Fisher gun for loading small tanks COD. FSH.N480: N° 01.
40m aluminium hose reel with GHL 160 hydraulic motor with reel support, clutch pinion group, chain: No. 01.
Hydraulic and pneumatic system.
Fire extinguisher according to ADR.
Document box: N° 01.
General stop system: No. 01.
Sandblasting Grade SA 2.5.
Painting:
Prime with a coat of two-component epoxy primer.
Finish with two coats of two-component aliphatic acrylic polyurethane enamel, RAL 9010 white.

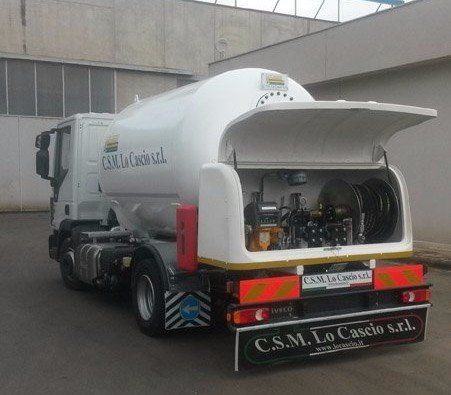

DUMPSTER

Container made entirely of fiberglass and equipped with an access door equipped with gas rods to facilitate opening. Hermetically sealed door and equipped with a stainless steel lock. Steel frame fixed to the rear of the vehicle to support the container and support the meter and the reel. Complete with LED and fluorescent armor installed inside.

OPTIONAL:

• Rochester Level Indicator
