Approved dispenser tanks

PRODUCTION OF approved dispenser tanks

YOUR RELIABLE SOLUTION FOR HIGH QUALITY METAL TANKS AND METAL CARPENTRY PRODUCTS

Dispensing tanks approved

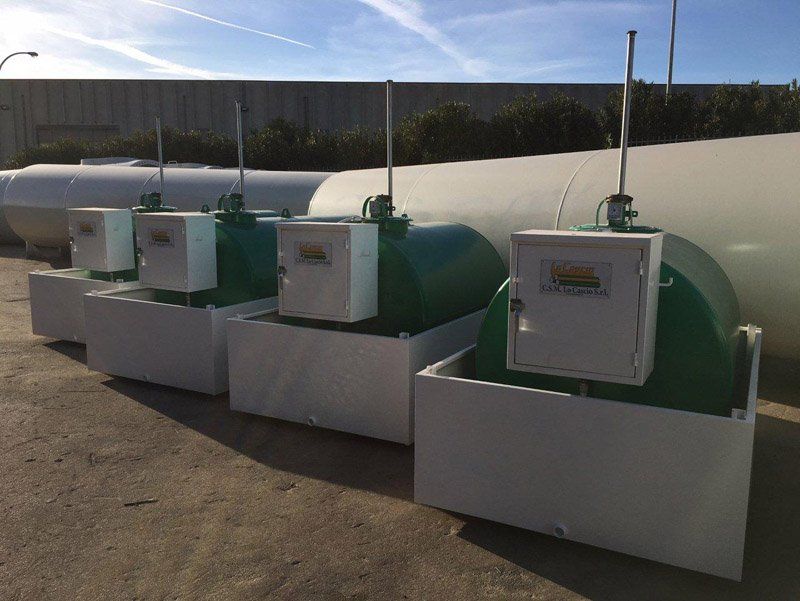

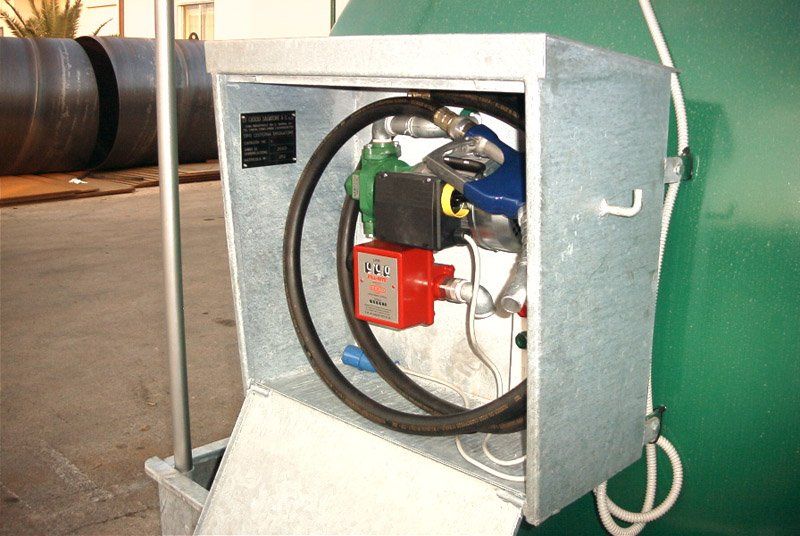

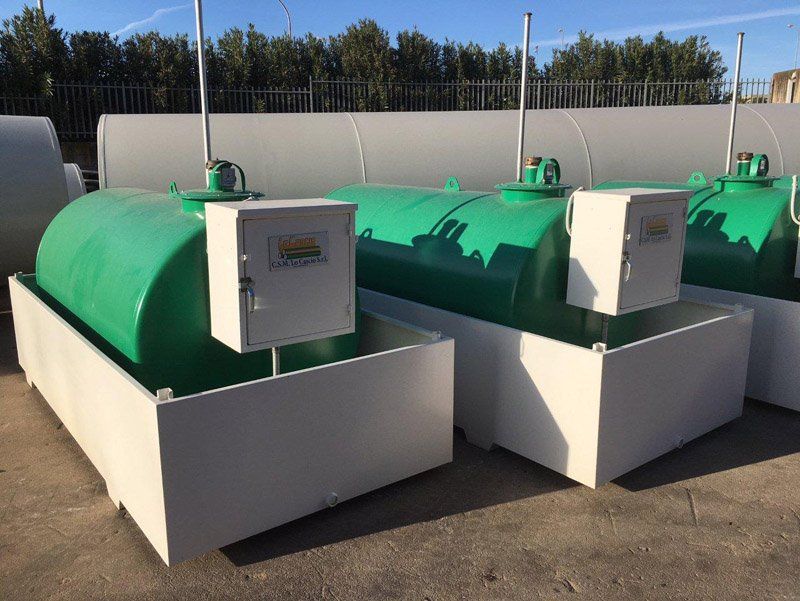

The mobile tank/dispenser for liquid fuels of category "C" produced by CSM Lo Cascio of Caltanissetta is designed with a cylindrical horizontal axis and complies with the safety regulations DM 31.07.1934 title I n.XVII and DM 22.11.2017. Among its construction features, we find an electric pump group approved by the Ministry of the Interior, single-phase, with a flow rate of 60 litres per minute, equipped with a gun and 4-metre hose, general and partial resettable counter, all assembled in a lockable box located on one of the two bottoms of the tank. It also includes a 500mm diameter bolted flanged manhole with gasket and a cover which houses a 3" inlet safety device, ¾" vent and flame arrester. Other features include lifting hooks, bottom drain, visual level indicator with a dial and an external coating of a rust-proof primer and green enamel.

Accessories and coverings

The mobile tank/dispenser is equipped with a 110% containment basin made of S 235 JR UNI EN 10025 sheet metal, painted white, to ensure maximum safety and prevent any fuel spills. Furthermore, it is equipped with a protective roof for the dispenser tank, built with 4/6 API 5L Std tube uprights and a single-pitch cover in painted sheet metal. These elements ensure adequate protection and safe operation in all operating conditions. For more information on our mobile tanks/dispensers, do not hesitate to contact our company.

Slide Title

Scrivi qui la tua didascalia

Button

Slide Title

Scrivi qui la tua didascalia

Button

Our approved dispenser tanks are accompanied by:

declaration of conformity with the type approval act, issued by the Ministry of the Interior no. 3796-4113 sub. 201 of 25/03/1993 and subsequent validity renewal acts as per Note Prot. 2103-4113 sub. 201 of 16/05/1997, Note Prot. DCPST/A4/2606/AT/13201 of 03/07/2002 and Note Prot. DCPST/A7/1860/AT/09201 of 17/04/2007 and subsequent amendments.
test certificate at a pressure of 1.5 bar, for 1 hour in pneumatic test;
capacitive metric table;
use and maintenance manual;
identification plate.
