LPG Tanks for Tax-Free Systems

YOUR RELIABLE SOLUTION FOR HIGH QUALITY METAL TANKS AND METAL CARPENTRY PRODUCTS

Tanks for plants combustion

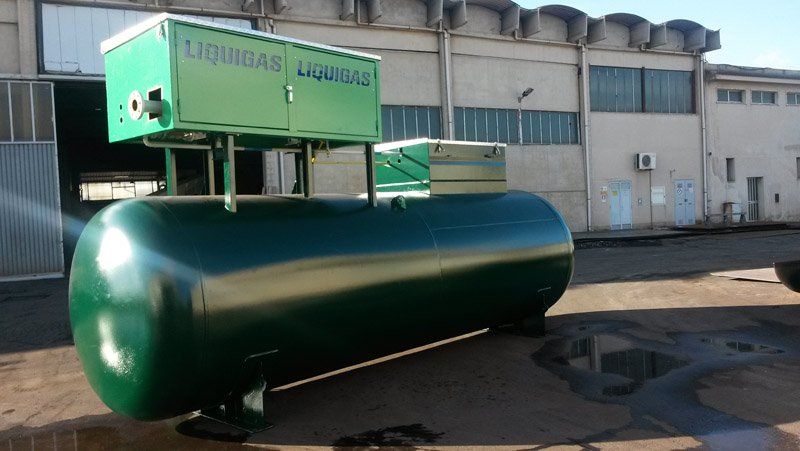

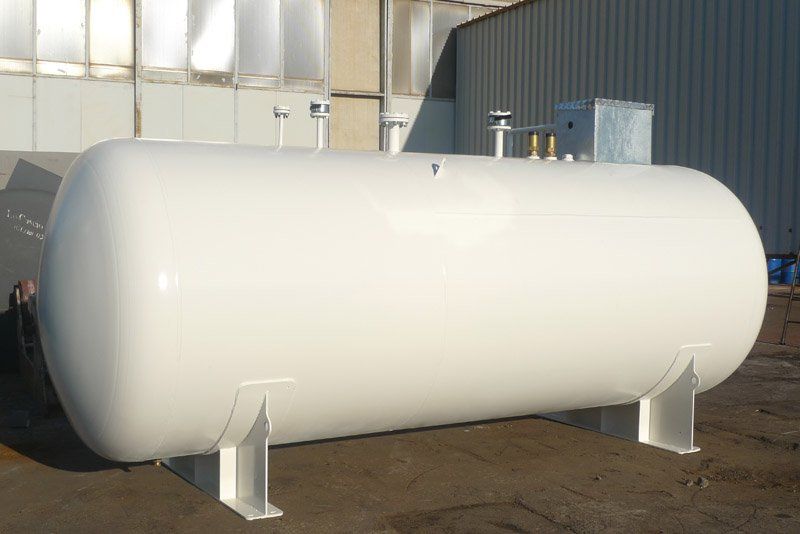

As regards LPG storage tanks intended for combustion plants, CSM Lo Cascio of Caltanissetta produces tanks with capacities of 10 and 12.5 m3. These tanks are certified as assemblies in compliance with Directive 2014/68/EU (Ex 97/23/EC) and are equipped with the necessary safety and control accessories. Our attention to quality and safety guarantees reliable and long-lasting products, ideal for meeting the needs of combustion plants.

CERTIFICATIONS

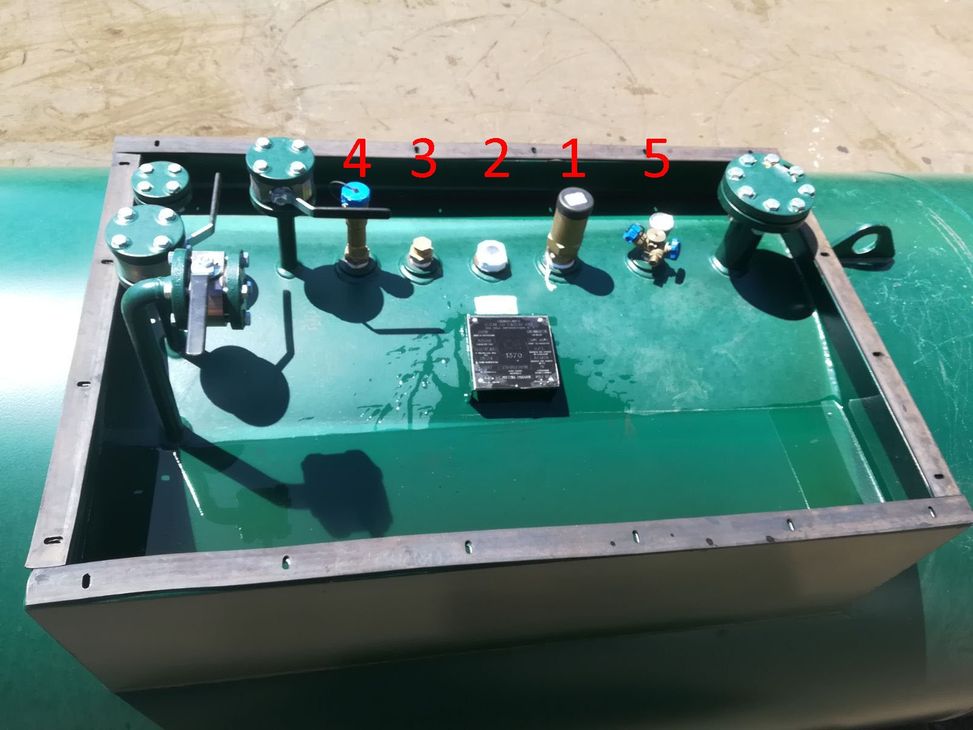

Safety and operating accessories assembled to the reservoir

No. 01 OMECA safety valve mod. EU 30 complete with OMECA sub-valves mod. ST 32; (No. 02 in the above-ground version);
No. 01 Level indicator mod. 2074 Cotrako;
No. 01 Liquid recovery valve VL 25;
No. 01 OMECA filling valve mod. VRN 20L; (mod. VRN 20 FT version);
No. 01 GSE 35 service group (gaseous phase) with balance valve, complete with connection with excess flow valve;

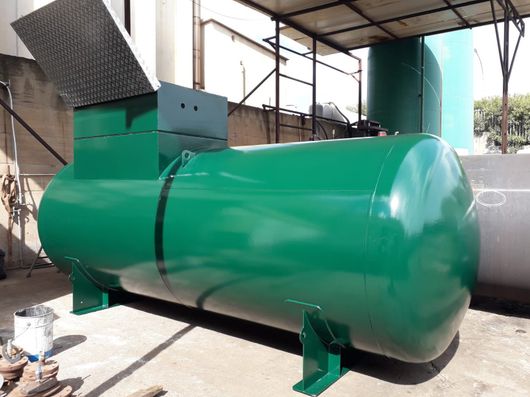

All inside a protective well measuring 900 x 1450 mm with hot-dip galvanized upper part and 2.5 mm thick textured aluminum cover.

Slide Title

Scrivi qui la tua didascalia

Button

Slide Title

Scrivi qui la tua didascalia

Button

External cladding

LPG tanks with capacities of MC. 10 and 12.5 can be buried directly without formwork, as they are coated with two-component epoxy-polyamine paint with very high dry residue, applied hot, for a final film thickness of no less than 500 microns, applied after careful sandblasting to almost white metal SA 2.5, according to UNI EN ISO 8503, and equipped with an adequate cathodic protection system.

Protection cathode

The cathodic protection system has the function of grounding the tanks.
The system is designed to achieve maximum efficiency and durability, so that the system operates regularly throughout the expected life of the Mg anodes.
Normally the expected period is about 20 years, after which it is sufficient to replace only the anodes.

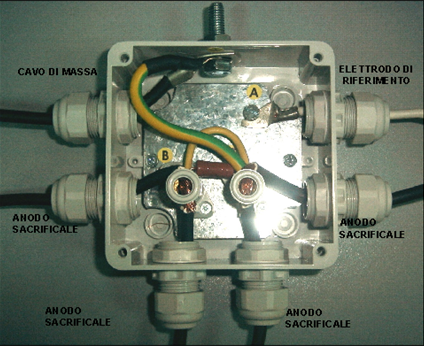

Elements of cathodic protection:

No. 04 magnesium anodes of 6 kg
Reference electrode

Slide Title

Scrivi qui la tua didascalia

Button

Slide Title

Scrivi qui la tua didascalia

Button

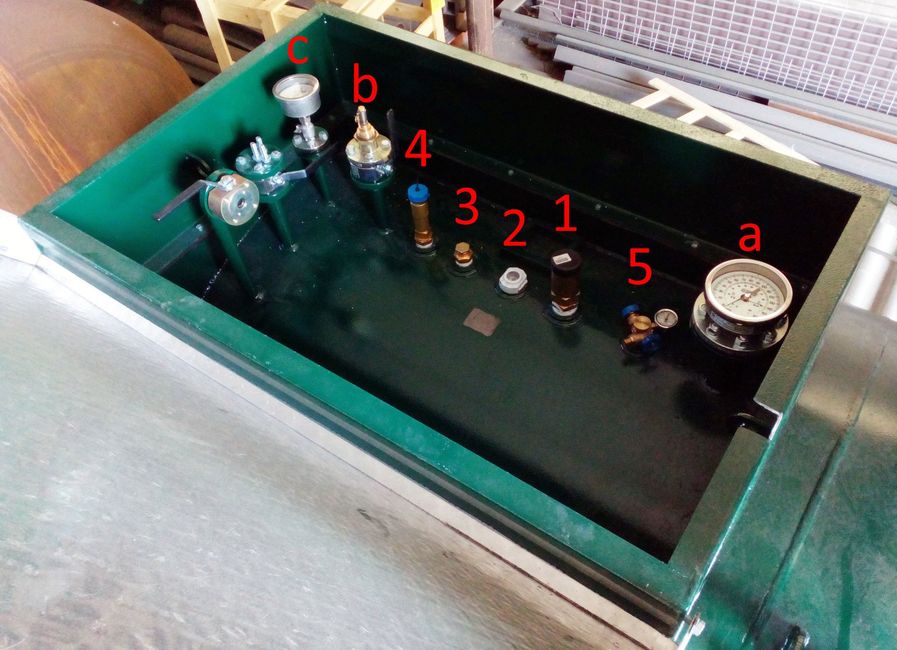

Optional accessories for the system tax-free

No. 01 Level indicator type LM1 for horizontal underground tank MC 10/12.5, diam. 1700 200mm. PN40 DN65; Dial diameter mm. 150 with double scale, both centimeter and percentage;
No. 01 Metric rod DN 25 PN 40 stainless steel probe;
No. 01 Antistatic and firesafe flat body ball valve dn 25 PN 40 ASTM A 350 LF2;
No. 01 Thermometer DN 100 Axial connection -30° 70°C DN15 PN10/40, complete with valve, imm. Underfl. – bulb=1700, without thermometric pocket for underground tanks;
Mounting them to the tank;
N° 01 “SIT” Certification
